Bundle DJI RS 5
Regular price
€718,99
Overview
Bundle DJI RS 5 is a lightweight commercial stabilizer bundle designed for controlled camera movement. It includes the improved RS Intelligent Tracking Module and the electronic briefcase handle. DJI RS 5 supports subject selection on the stabilizer touchscreen, fine adjustment knobs, automated 2nd-generation axis locks, and native vertical shooting. The standard battery provides a maximum standby time of approximately 14 hours and charges in approximately 1 hour.
Highlights
- Recommended payload weight: 3.0 kg
- Gimbal weight: environ 1 193 g
- Maximum controlled rotation speed: 360°/s on pan, tilt, and roll
- Automated axis locks: Auto
- Battery maximum standby time: environ 14 heures
- Improved RS Intelligent Tracking Module included
- Electronic briefcase handle included

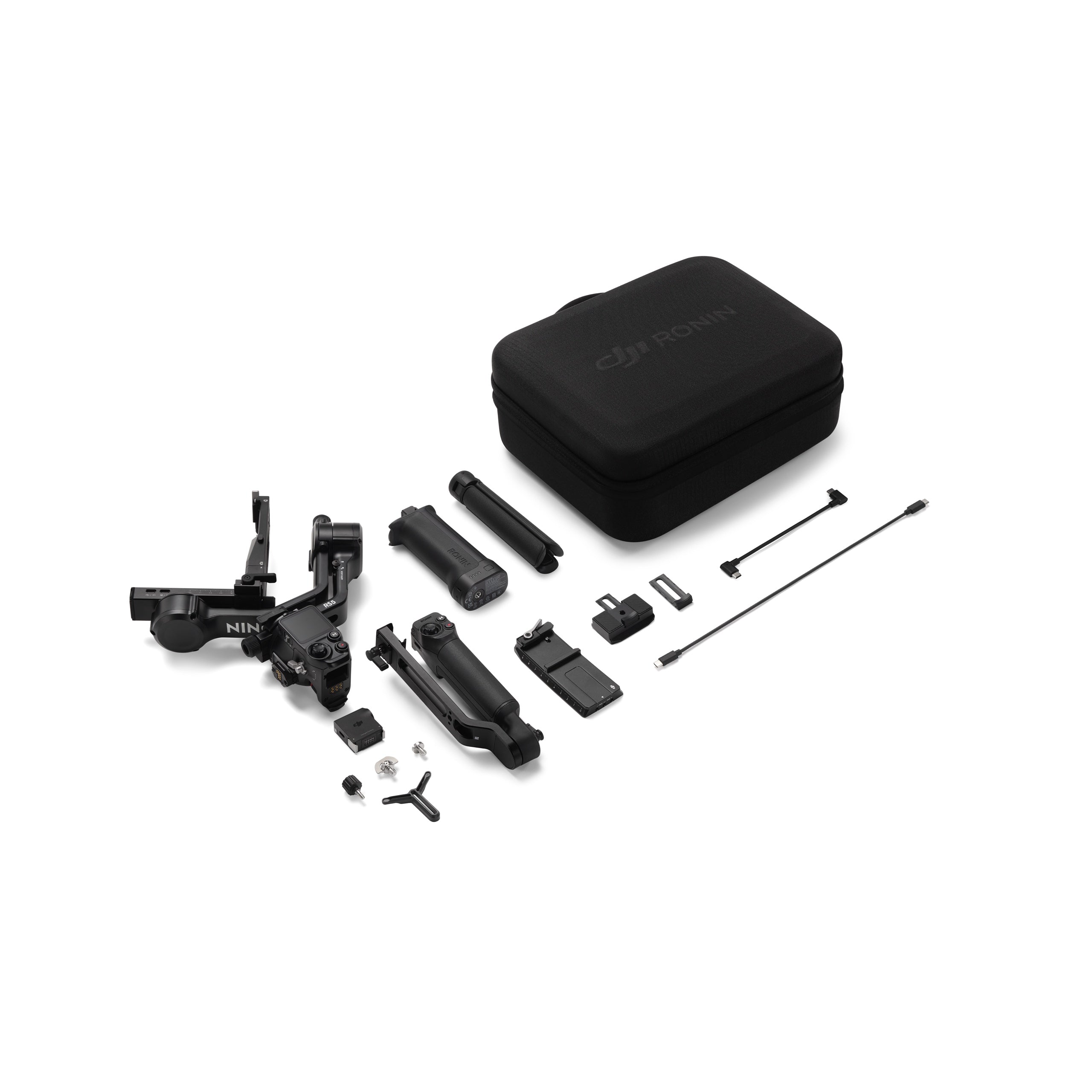

What's in the box
- Gimbal × 1
- Quick-release tripod × 1
- Carrying case × 1
- Lens fastening strap × 1
- L-shaped cable (USB-C, 13 cm) × 1
- Screw kit × 1
- RS 5 upper quick-release plate × 1
- RS 5 lower quick-release plate × 1
- BG33 battery grip × 1
- Improved RS Intelligent Tracking Module × 1
- Electronic briefcase handle × 1
- Multi-camera control cable (USB-C, 30 cm) × 1
- DJI logo sticker × 1
Technical specifications
| Ports | |
|---|---|
| Accessory port | Ports accessoires (RSA)/NATO pour gamme Ronin |
| Mounting hole | Trou de fixation 1/4″-20 |
| Cold shoe | Griffe |
| Camera control port | Port de contrôle de la caméra (USB-C) |
| Multi-function port | Port multifonction (USB-C) |
| Battery | |
| Model | BHX715-2150-15.48 |
| Type | LiPo 4S |
| Capacity | 2 150 mAh |
| Energy | 33,29 Wh |
| Voltage | 11,2 V à 17,8 V |
| USB-C input | 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/3 A |
| Max standby time | environ 14 heures* |
| Charging time | environ 1 heure** |
| Recommended charging temperature | 5 à 40 °C |
| Connections | |
| Bluetooth | Bluetooth 5.0 |
| Charging port | Port de charge USB-C |
| App | |
| Ronin app requirement | iOS 14.0 ou version ultérieure; Android 9.0 ou version ultérieure |
| Touchscreen | |
| Supported languages | Anglais, Chinois simplifié, Chinois traditionnel, Allemand, Français, Coréen, Japonais, Espagnol, Portugais (Brésil), Russe, Thaïlandais |
| Operating performance | |
| Recommended payload weight | 3.0 kg |
| Max controlled rotation speed | Pano : 360°/s; Inclinaison : 360°/s; Roulis : 360°/s |
| Mechanical range | Axe panoramique : rotation continue à 360°; Axe de roulis : -95° à +240°; Axe d’inclinaison : -112° à +214° |
| Axis locks | Auto |
| Vertical shooting | Pris en charge |
| Mechanical and electrical properties | |
| Operating frequency | 2,4000 - 2,4835 GHz |
| Bluetooth transmitter power | < 8 dBm |
| Operating temperature | -20 à 45 °C |
| Weight | Nacelle : environ 1 193 g (y compris les plaques de dégagement rapide supérieure et inférieure et les vis); Poignée : environ 274 g; Trépied à ouverture rapide : environ 149 g; Plaques de dégagement rapide supérieure et inférieure : environ 96 g (vis incluses) |
| Dimensions | Plié : 247,4 × 115,7 × 258,7 mm (L × l × H, sans caméra, poignée ni trépied à ouverture rapide); Déplié : 223,2 × 192,2 × 418,8 mm (L × l × H, poignée incluse, caméra et trépied à ouverture rapide exclus) |
| Improved DJI RS Intelligent Tracking Module | |
| Weight | environ 19 g |
| Dimensions | 36,3 × 17,5 × 38,2 mm (L × l × H) |
| Tracking distance | 0,5 à 10 m |
| Operating environment | éclairement > 20 lux |
| Trigger modes | déclencheur de la nacelle, gestes, écran tactile de la nacelle |
| Gesture-triggered functions | démarrage/arrêt du suivi, démarrage/arrêt de l’enregistrement, ajustement du cadrage |
| Power consumption | environ 1 W |
| Operating temperature | -10 à 45 °C |
| Installation method | fixation magnétique |
| Electronic briefcase handle | |
| Weight | environ 230 g |
| Dimensions | 60 × 197,5 × 79,5 mm (L × l × H) |
| Standby power consumption | environ 0,2 W |
| Operating temperature | -20 à 45 °C |
