Unitree B1 Industrial Quadruped Robot
Regular price
€0,00

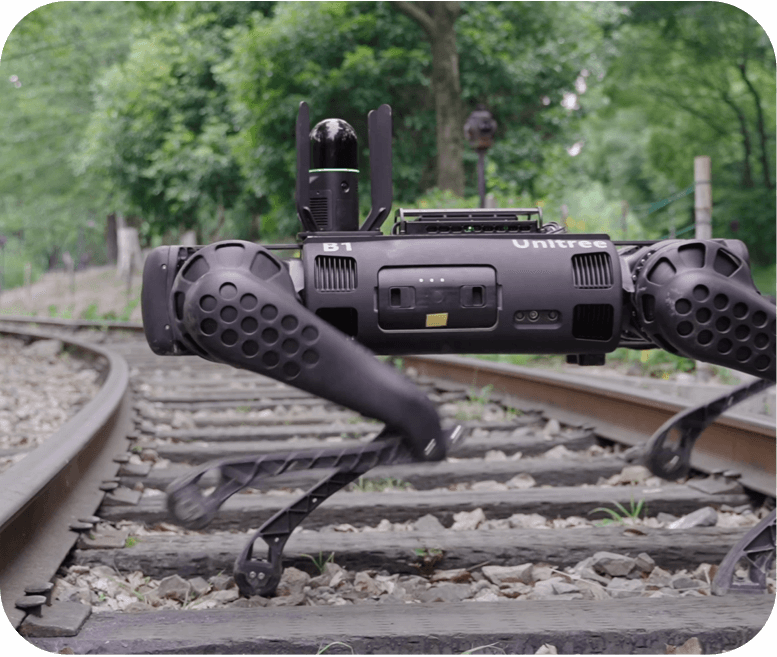

Unitree B1 is an industrial-grade quadruped robot from Unitree Robotics. It is described as having application potential in agriculture, industry, security patrols, surveys and exploration, and public rescue. The robot can adapt to complex terrain and all kinds of bad weather. With its mobility and flexibility, Unitree B1 can replace humans to complete work in many special or high-risk environments.
Highlights
- Industrial-grade quadruped robot product of Unitree Robotics.
- Designed for application directions including agriculture, industry, security patrols, surveys and exploration, and public rescue.

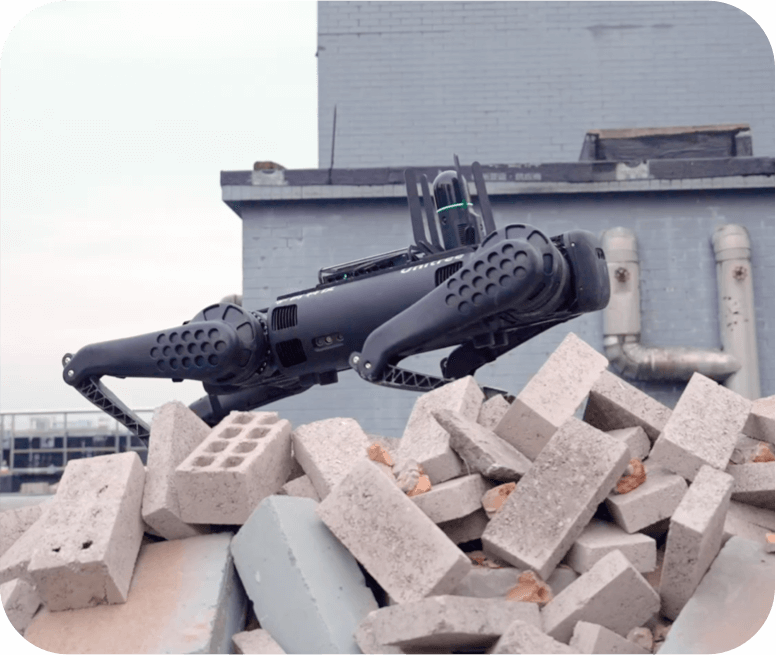

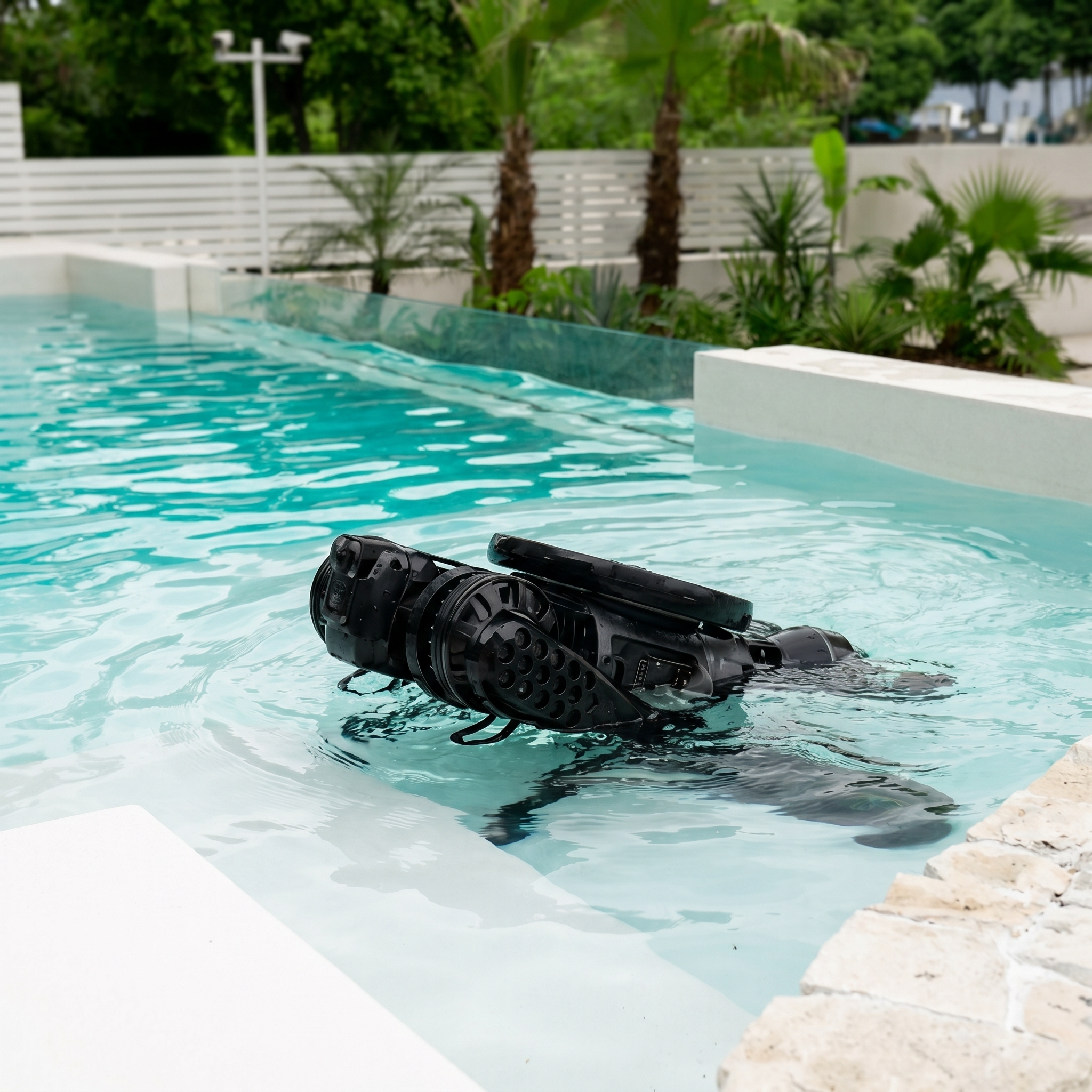

- Can adapt to complex terrain and all kinds of bad weather.
- Can replace humans to complete work in many special or high-risk environments.
- Continuous walking load is 20 kg.
- Maximum standing load is 80 kg.
- Uses an Intel i5-1135G7 main control CPU.
- Uses three Jetson XavierNX sensing calculation platforms.
- Equipped with five Intel RealSense D430 sensing sensors.
Technical specifications
| Spec | Value |
| Dimensions — Length × Width × Height (standing) | 1126 × 467 × 636 mm |
| Dimensions — Length × Width × Height (folded) | 1202 × 467 × 297 mm |
| Weight — Whole machine weight including battery | About 50 kg |
| Weight — Battery weight | About 5 kg |
| Load — Continuous walking load | 20 kg |
| Load — Maximum standing load | 80 kg |
| Load — Recommended load while carrying | Within 20 kg |
| Endurance — Standing endurance | 5 h |
| Endurance — Continuous walking endurance without load | 2 h |
| Endurance — Endurance conditions | Related to load, fuselage height, ground flatness, and ambient temperature; values are in an ideal environment |
| Control and Sensing — Main control CPU | Intel i5-1135G7 |
| Control and Sensing — Sensing calculation platform | Jetson XavierNX × 3 |
| Control and Sensing — Sensing sensor | Intel RealSense D430 × 5 |
| Battery — Type | Lithium battery |
| Battery — Rated capacity | 18000 mAh |
| Battery — Rated voltage | 51.8 V |
| Battery — Rated energy | 932.4 Wh |
| Battery — Charge limit voltage | 58.8 V |
| Battery — Charge time | 1–2 h |
| Output — Standard output | Power: 12 V / 24 V |
| Expansion — Expansion board interfaces | Gigabit interface × 7 / RS485 × 4 / USB × 5 / CAN × 4 |
| Working Temperature — Battery working temperature | -5 ℃ to 45 ℃ |
| Mobility — Maximum step height to climb stairs | 20 cm |
| Protection — Protection | Temperature / Current |
Use cases
- Agriculture
- Industry
- Security patrols
- Surveys and exploration
- Public rescue
- Work in special or high-risk environments
